DRAGON SERIES / SILENCED DUCT FANS
MAX AIRFLOW.
MINIMUM NOISE.
Five sizes from 335 to 2600 m³/h. Insulated acoustic shell, external speed controller, 38 dB at 125 mm.
36 dB(A) at 3 m
125 MM, FULL SPEED
2818 m3/h
300 MM, MAX AIRFLOW
805 Pa
PEAK STATIC PRESSURE
960 mg/g
FILTER IODINE RATING
THE RANGE
Three lines. Sized by airflow, bought from your local store.
SILENCED
125 / 150 / 200 / 250 / 300 mm. The silenced design enhances user comfort, making it ideal for noise-sensitive spaces.
STANDARD
125 / 150 / 200 / 250 / 300 mm. For any ventilation system requiring high-pressure output.
FILTRATION
Seven sizes, 595 to 2890 m³/h. 45 mm carbon bed, 950 mg/g iodine. Seven sizes, 595 to 2890 m³/h. 45 mm carbon bed, 950 mg/g iodine.
SILENCED
125 / 150 / 200 / 250 / 300 mm. The silenced design enhances user comfort, making it ideal for noise-sensitive spaces.
STANDARD
125 / 150 / 200 / 250 / 300 mm. For any ventilation system requiring high-pressure output.
FILTRATION
Seven sizes, 550 to 3200 m³/h. 50 mm carbon bed, 960 mg/g iodine. Seven sizes, 550 to 3200 m³/h. 50 mm carbon bed, 960 mg/g iodine.
FIND A RETAILER
NEAR YOU
WHY SILENCED
01 - NOISE
An insulated acoustic shell wraps the motor housing. A tent can sit in a spare room or a garage under the house without announcing itself through the wall.
02 - PRESSURE
03 - CONTROL
Each fan includes a remote 0–10 V speed controller. Add the Smart Controller if you want the fan to operate based on temperature and humidity rather than a voltage signal.
LINE 01 / SILENCED

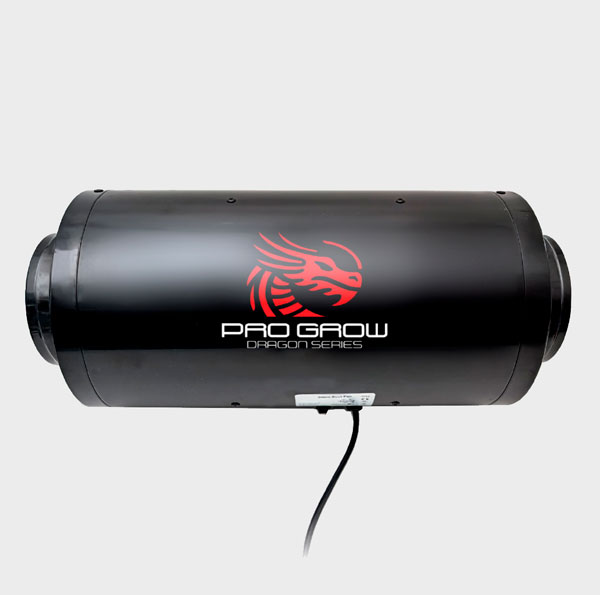

Aeroblast Silenced Duct Fan
Available in five duct sizes, with a mixed‑flow impeller housed in an insulated shell. It operates on 230 V and includes a remote 0–10 V speed controller.
| MODEL | DUCT | AIRFLOW | PRESSURE | NOISE | POWER | |
|---|---|---|---|---|---|---|
PGDS125S |
125 mm |
337 m3/h |
550 Pa |
36 dB(A) |
27 W | |
PGDS150S |
150 mm |
480 m3/h |
583 Pa |
38.6 dB(A) |
42 W | |
PGDS200S |
200 mm |
995 m3/h |
656 Pa |
47.4 dB(A) |
90 W | |
PGDS250S |
250 mm |
1764 m3/h |
805 Pa |
49.7 dB(A) |
175 W | |
PGDS300S |
300 mm |
2818 m3/h |
587 Pa |
45.7 dB(A) |
300 W |
LINE 02 / STANDARD

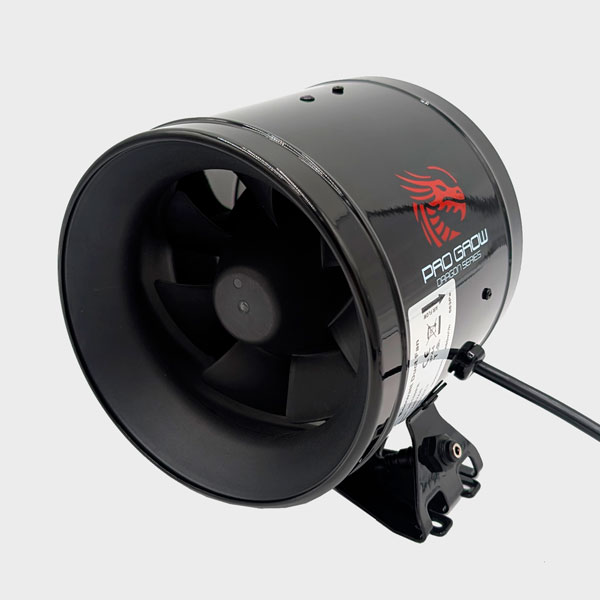

Aeroblast Duct Fan
The same mixed‑flow impeller and speed controller, but without the acoustic shell, making it shorter and lighter, and suitable for use when silence isn’t a priority.
| MODEL | DUCT | AIRFLOW | PRESSURE | NOISE | POWER | |
|---|---|---|---|---|---|---|
PGDS125N |
125 mm |
337 m3/h |
550 Pa |
47.7 dB(A) |
27 W | |
PGDS150N |
150 mm |
480 m3/h |
583 Pa |
50.1 dB(A) |
50 W | |
PGDS200N |
200 mm |
995 m3/h |
656 Pa |
53.8 dB(A) |
90 W | |
PGDS250N |
250 mm |
1764 m3/h |
805 Pa |
58.2 dB(A) |
180 W | |
PGDS300N |
300 mm |
2818 m3/h |
587 Pa |
62.3 dB(A) |
300 W |
LINE 02 / STANDARD
Aeroblast Duct Fan
The same mixed‑flow impeller and speed controller, but without the acoustic shell, making it shorter and lighter, and suitable for use when silence isn’t a priority.
| MODEL | DUCT | AIRFLOW | PRESSURE | NOISE | POWER | |
|---|---|---|---|---|---|---|
PGDS125N |
125 mm |
337 m3/h |
550 Pa |
47.7 dB(A) |
27 W | |
PGDS150N |
150 mm |
480 m3/h |
583 Pa |
50.1 dB(A) |
50 W | |
PGDS200N |
200 mm |
995 m3/h |
656 Pa |
53.8 dB(A) |
90 W | |
PGDS250N |
250 mm |
1764 m3/h |
805 Pa |
58.2 dB(A) |
180 W | |
PGDS300N |
300 mm |
2818 m3/h |
587 Pa |
62.3 dB(A) |
300 W |
LINE 03 / FILTRATION

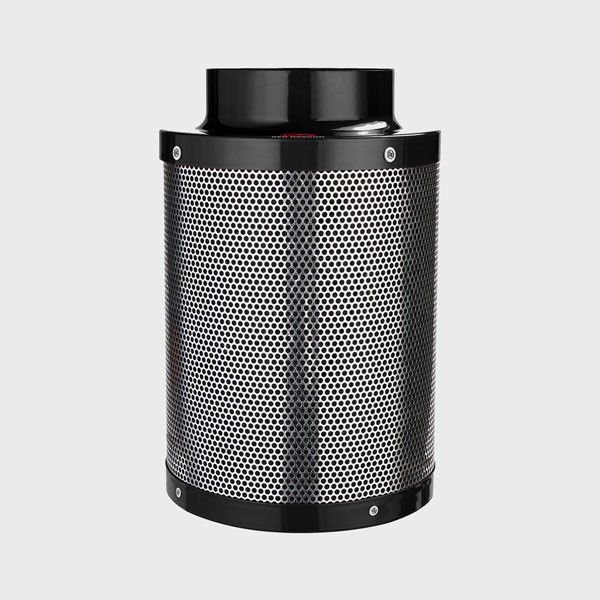

Carbon Filter
Seven sizes, 595 to 2890 m³/h. 45 mm carbon bed, 950 mg/g iodine, 24% butane, 40 mm anti-air bypass foam, 53.8% steel mesh open area, steel top and bottom collars, 5 mm Dacron pre-filter.
| MAX AIRFLOW | WEIGHT | |
|---|---|---|
595 m3/h |
|
4.7 kg |
810 m3/h |
|
7.4 kg |
935 m3/h |
|
8.7 kg |
1105 m3/h |
|
9.6 kg |
1530 m3/h |
|
16.1 kg |
2380 m3/h |
|
25.5 kg |
2890 m3/h |
|
30.5 kg |
LINE 04 / CONTROL
Smart Controller
Controls your Aeroblast fan based on real‑time room conditions, showing temperature, humidity, and fan speed together.
TEMP
HUMIDITY
IN THE GROW ROOM
Fan, filter and controller are one system
Adjust the fan speed to control temperature and humidity. For complete odour removal, filters must be matched to the airflow of the fan.
